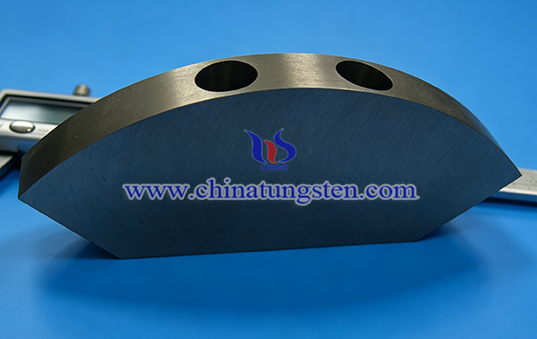

95WNiFe Alloy Counterweight

1. What's 95WNiFe Alloy Counterweight?
95WNiFe alloy counterweight is a high-density tungsten alloy counterweight made with tungsten as the matrix (W content approximately 95%), nickel (Ni approximately 3.5%) and iron (Fe approximately 1.5%) as the binder phase, manufactured through powder metallurgy liquid-phase sintering. CTIA's 95WNiFe alloy counterweight achieves greater mass concentration within smaller volume, suitable for components with higher requirements for counterweight space, mass distribution and mechanical load-bearing capacity.

2. Features of CTIA's 95WNiFe Alloy Counterweight
(1) High Density and Small Volume Occupation: Density is 17.75–18.35 g/cm³. Under the same mass the required volume is smaller, suitable for mass compensation and balancing structures in narrow installation spaces.
(2) High Mass Concentration and Counterweight Efficiency: Tungsten content is approximately 95%, enabling greater mass concentration per unit volume, suitable for rotating and precision components with higher requirements for counterweight dimensions and mass distribution.
(3) High Strength and Strong Load-Bearing Capacity: Tensile strength is not less than 724 MPa and 0.2% yield strength is not less than 517 MPa, capable of withstanding inertial loads, vibration and continuous mechanical stress during operation.
(4) Good Vibration Resistance and High Operational Stability: Offers relatively high stiffness and strength, usable for static balance, dynamic balance, high-speed rotating inertial components and vibration control structures.
(5) Good Machinability and Flexible Structures: Supports turning, milling, drilling, tapping and grinding, with mounting holes, notches, steps and irregular contours easily machined.
(6) Dimensional Stability with Low Thermal Expansion: The linear expansion coefficient is approximately 4.4 × 10⁻⁶/K near 20°C, reducing thermal dimensional shifts and helping preserve the designed fit between the counterweight and its mounting structure.

3. Applications of CTIA's 95WNiFe Alloy Counterweight
(1) Aerospace: Used in aircraft control surface counterweights, rotor balancing parts, gyroscope rotors, inertial elements, flight control mechanisms and aviation actuators.
(2) Industrial Machinery: Used in machine tool spindles and rotating components, vibrating screens, conveying equipment, automation equipment, industrial robots and high-speed rotating mechanisms.
(3) Automotive and Racing: Used in crankshaft counterweights, flywheels, drive shafts, wheel balancing parts, engine rotating components and vehicle chassis balancing structures.
(4) Precision Instruments: Used in instrument base counterweights, flywheels, gyroscopes, motion mechanisms, precision balancing parts and inertial measurement assemblies.
(5) Oil Drilling: Used in downhole tools, logging instruments, drilling stabilization members, measurement-while-drilling tools and downhole rotating assemblies.
(6) Sports Equipment: Used in golf club heads, racket counterweights, fishing sinkers, dart shafts, fitness equipment and other sports equipment requiring mass distribution adjustment.
(7) Machinery and Rotating Systems: Used in rotors, centrifugal mechanisms, balancing discs, inertial wheels, rotating shaft systems and high-speed rotating components.
(8) Electronics and Small Devices: Used in camera gimbals, precision actuators, vibration control components and small rotating devices.

4. Specifications of CTIA's 95WNiFe Alloy Counterweight
(1) Composition: W approximately 95%, Ni approximately 3.5%, Fe approximately 1.5%
(2) Density: 17.75–18.35 g/cm³

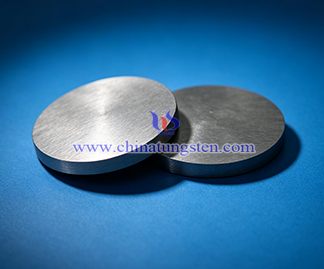

(3) Shapes: Tungsten alloy rods (cylinders, discs), blocks (cubes), plates (sheets), rings and irregular parts
(4) Dimensions: Customizable

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with capabilities in powder metallurgy and precision machining. CTIA controls composition, density, dimensions and machining accuracy and offers customized tungsten alloy counterweights in different structural forms and sizes for aerospace inertial components, automotive rotating components, machine tool balancing parts and precision instrument counterweights.
