Non-Magnetic Tungsten Alloy Counterweight

1. What's Non-Magnetic Tungsten Alloy Counterweight?
Non-magnetic tungsten alloy counterweight generally refers to W-Ni-Cu tungsten alloy counterweight, which contains no iron-based binder phase and therefore has non-magnetic characteristics. It is mainly used in equipment requiring mass balancing with strict requirements for magnetic field interference. CTIA's non-magnetic tungsten alloy counterweight combines the high density of tungsten with the low magnetic permeability of the nickel-copper binder phase, providing high-density counterweighting while reducing its influence on the surrounding magnetic field environment.

2. Features of CTIA's Non-Magnetic Tungsten Alloy Counterweight
(1) Non-Magnetic and Low Magnetic Interference: W-Ni-Cu tungsten alloy contains no iron-based binder phase and has low magnetic permeability. The relative magnetic permeability of some grades can be as low as μ ≤ 1.02, helping minimize interference with magnetic field uniformity and magnetically sensitive components in strong magnetic field environments.
(2) High Density and Small Volume: Density is typically 16.5–18.75 g/cm³, allowing a relatively large counterweight mass within limited installation space and making it suitable for compact precision equipment.
(3) Good Thermal Conductivity and Dimensional Stability: Has good thermal conductivity, with thermal conductivity reaching 80–115 W/m·K for some grades. Low coefficient of thermal expansion helps limit dimensional changes caused by temperature variation.
(4) Good Strength and Corrosion Resistance: Offers good strength and vibration resistance, with tensile strength reaching 700–1200 MPa for some grades. The copper-based binder phase helps improve corrosion resistance in humid environments.
(5) High Density and X-Ray Attenuation: Tungsten has high atomic number and high density, providing good attenuation of X-rays and γ-rays. Certain medical equipment components can combine counterweighting and radiation shielding requirements through appropriate structural design.

3. Applications of CTIA's Non-Magnetic Tungsten Alloy Counterweight
(1) Medical Equipment: Used for counterweighting in Magnetic Resonance Imaging (MRI) equipment, Computed Tomography (CT) equipment and medical rotating components.
(2) Aerospace: Used as counterweights in gyroscope rotors, inertial navigation systems, satellite attitude control components and precision aerospace instruments.
(3) Precision Instruments: Used for mass balancing in magnetic field detection instruments, precision measuring equipment, optical instruments and laboratory equipment.
(4) Rotating Equipment: Used for static and dynamic balancing of rotors, rotating components and precision motors.
(5) Automation Equipment: Used for center-of-gravity adjustment in precision actuators, robotic arms and magnetically sensitive moving components.

4. Specifications of CTIA's Non-Magnetic Tungsten Alloy Counterweight
(1) Material: W-Ni-Cu tungsten alloy
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.75 g/cm³
(4) Typical Grades: 90WNiCu, 93WNiCu, 95WNiCu

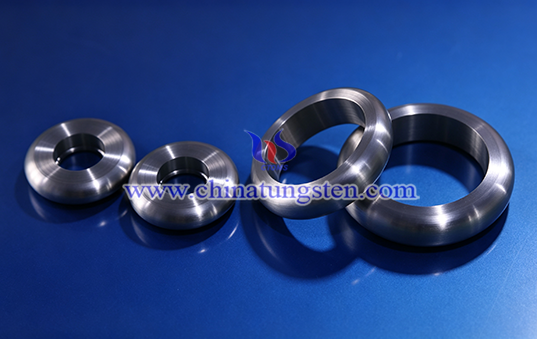

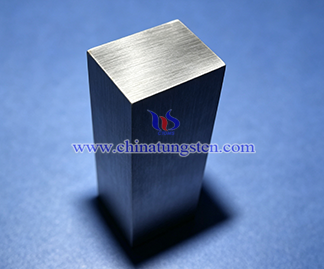

(5) Product Forms: Counterweight blocks, rods, plates, sheets, rings and customized counterweight parts
(6) Dimensions: Custom sizes

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, supported by established powder metallurgy and precision machining processes. CTIA's tungsten alloy counterweights are available in different tungsten contents, densities, dimensions and structural forms, with material composition and machining precision controlled according to product requirements. CTIA can customize counterweight blocks, rods, plates, sheets, rings and irregular parts based on required mass, installation space, magnetic field conditions and dimensional tolerances, supporting mass balancing applications in medical equipment, aerospace systems, precision instruments and other magnetically sensitive equipment.
