Tungsten Alloy Machine Tool Counterweight

1. What's Tungsten Alloy Machine Tool Counterweight?
Tungsten alloy machine tool counterweight refers to a mass-balancing component fitted to machine tool slides, columns, spindle heads, lifting assemblies, and similar structures. Its role is to offset the weight of moving assemblies, correct mass distribution, and compensate for gravitational loads during movement. With its high density, tungsten alloy allows substantial counterweight mass to be accommodated in confined machine spaces. Positioning and mass can be configured to suit the machine's structural layout, axis travel, and load conditions, helping maintain balanced motion and manage forces acting on drive mechanisms.

2. Features of CTIA's Tungsten Alloy Machine Tool Counterweights
(1) High Density, Reduced Installation Volume: With a typical density of 16.5–18.8 g/cm³, tungsten alloy occupies less space than steel at the same mass, making it suitable for confined counterweight locations in CNC machine tools, machining centers, and precision machine tools.
(2) Balancing Loads on Moving Components: Matching counterweight mass to the weight and direction of movement of slides, columns, spindle boxes, and lifting components helps offset gravitational loads and reduce the load on the drive system.
(3) Dimensional Stability Across Temperature Changes: With a coefficient of linear thermal expansion of approximately 4.4–5.5 × 10⁻⁶/K, tungsten alloy exhibits limited dimensional variation as machine temperatures and ambient conditions change, helping maintain a precise fit between the counterweight and its mounting structure.
(4) Flexible Structural Design: Available in blocks, plates, cylinders, and custom-shaped forms, tungsten alloy counterweights can incorporate threaded holes, countersunk holes, locating slots, and other mounting features to suit different machine layouts and installation requirements.
(5) Strength for Dynamic Operating Conditions: With a typical tensile strength of 700–1000 MPa, tungsten alloy can withstand vibration, impact, and repeated motion loads, making it suitable for counterweights used with reciprocating slides, lifting columns, and spindle box balancing mechanisms.
(6) Selectable Alloy Systems: W-Ni-Fe and W-Ni-Cu tungsten alloys offer different magnetic and mechanical characteristics. Selecting the appropriate alloy grade according to the machine tool's magnetic requirements, installation position, and operating conditions helps meet specific structural and machining needs.

3. Applications of CTIA's Tungsten Alloy Machine Tool Counterweights
(1) Automotive Manufacturing: Installed in lifting assemblies and moving mechanisms of automotive component processing equipment to offset gravitational loads and reduce the load carried by drive systems.
(2) Aerospace Manufacturing: Incorporated into motion mechanisms of aerospace component processing equipment, with counterweight mass configured to suit component loads and axis travel requirements.
(3) Mold Manufacturing: Fitted to spindle heads, slides, and lifting assemblies in mold-processing equipment to compensate for part of the gravitational load on moving assemblies and support balanced operation.
(4) Construction Machinery Manufacturing: Integrated into moving assemblies and lifting mechanisms of equipment used to machine construction machinery parts, helping distribute loads in accordance with the machine's structural configuration.
(5) Precision Parts Processing: Installed on moving assemblies of precision machining equipment to compensate for gravitational loads and support the operating requirements of the machine axes.

4. Specifications of CTIA's Tungsten Alloy Machine Tool Counterweights
(1) Materials: W-Ni-Fe and W-Ni-Cu tungsten alloys
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³

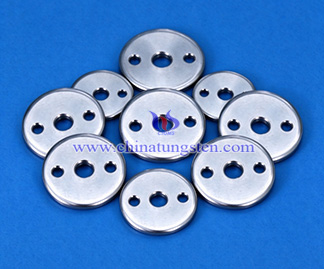

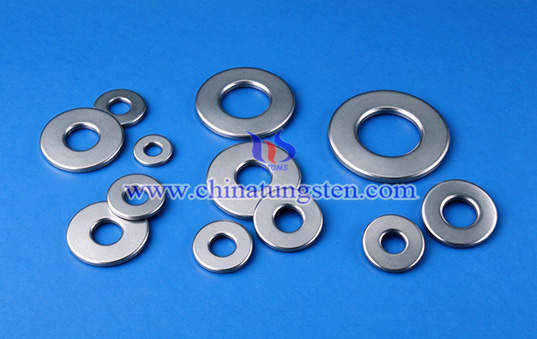

(4) Forms: Tungsten alloy blocks, plates, rods, rings, and customized counterweight parts
(5) Dimensions: Customizable
(6) Mounting Features: Threaded holes, countersunk holes, locating slots, and other fixing structures
(7) Surface Finish: Polished, customizable

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with expertise in powder metallurgy and precision machining. CTIA provides customized tungsten alloy counterweight solutions for CNC machine tools, machining centers, precision grinders, and heavy-duty machine tools, with dimensions and mounting structures tailored to moving-component mass, load requirements, installation space, axis travel, and fixing methods.
