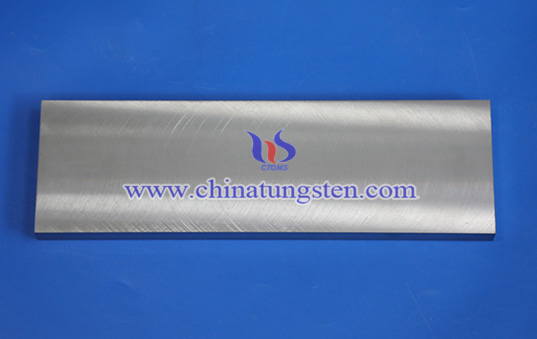

Tungsten Alloy Rowing Counterweight
1. What's Tungsten Alloy Rowing Counterweight?
Tungsten alloy rowing counterweight is high-density mass-adjustment component designed for key areas of a racing rowing boat, including the hull, cockpit, and sliding-seat system. It helps optimize overall boat weight, adjust the center-of-gravity position, and maintain balance on the water. CTIA's tungsten alloy rowing counterweight concentrates substantial mass within limited installation space. Available in various weights, dimensions, and geometries, it meets the customized assembly and performance-tuning requirements of different rowing boats.
2. Features of CTIA's Tungsten Alloy Rowing Counterweight
(1) High Density, Compact Size: Density typically ranges from 16.5–18.8 g/cm³, reducing volume by approximately 30%–40% compared with lead counterweights (approximately 11.34 g/cm³) at the same mass. This makes it suitable for confined areas such as narrow hull gaps and cockpit floors.
(2) Corrosion and Weather Resistance: Good resistance to oxidation and corrosion in humid, freshwater, and salt-spray environments helps prevent rust and surface peeling during long-term use, maintaining stable counterweight mass.
(3) High Strength, Impact Resistance: High tensile strength and hardness help the counterweight withstand frequent vibration and impact during high-speed rowing, as well as knocks during transportation, reducing the risk of deformation or fracture over extended use.
(4) High Dimensional Accuracy, Precision Assembly: Precision turning, milling, and grinding help control dimensional tolerances and individual component weight, ensuring a close fit with reserved slots inside the hull and sliding-seat structures.
(5) Flexible Shapes, Compact Installation: Available as strips, plates, blocks, cylinders, and custom-shaped parts to fit narrow hull cavities and cockpit structures.
(6) Lead-Free, Environmentally Friendly: Lead-free tungsten alloy avoids the environmental pollution associated with lead counterweights and suits rowing boats and other water sports equipment.
3. Applications of CTIA's Tungsten Alloy Rowing Counterweight
(1) Main Hull Counterweight: Installed at the bottom of the hull's internal cavity or near the load-bearing keel to adjust overall mass distribution and center-of-gravity position in rowing boats ranging from single-person to eight-person configurations.
(2) Cockpit and Foot-Stretcher Counterweight: Installed beneath the cockpit floor or around foot-stretcher mounts for localized weight adjustment in confined spaces without interfering with sliding-seat movement.
(3) Sliding-Seat Mechanisms and Moving Components: Counterweights are customized to fit seat rails and moving mechanisms, allowing precise adjustment of dynamic balance.
(4) Custom Counterweights for Complex Mounting Spaces: Designed to fit complex cross-sections, recessed slots, and irregular mounting locations specified by rowing boat manufacturers.
4. Specifications of CTIA's Tungsten Alloy Rowing Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Shape: Tungsten alloy plates, blocks, strips, cylinders, and irregular parts
(5) Dimensions and Weight: Customizable
CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with established expertise in powder metallurgy, and precision machining. CTIA provides tailored counterweight solutions for rowing boats, combining structural design, material selection, and precision manufacturing to meet specific requirements for weight, installation space, and mounting structure, with support for sample trials and batch production.
