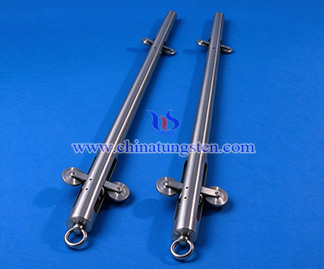

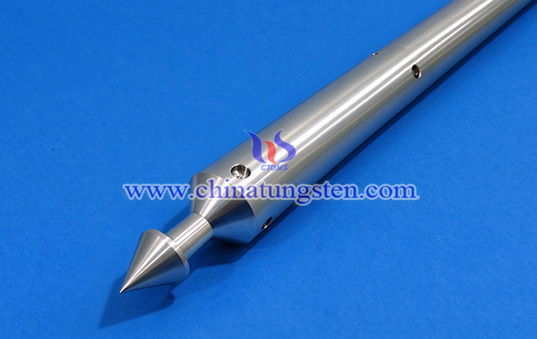

Tungsten Alloy Inclinometer Counterweight

1. What's Tungsten Alloy Inclinometer Counterweight?
Tungsten alloy inclinometer counterweight is balance weight installed inside inclinometer instruments or their associated measurement assemblies to add localized mass, adjust the center of gravity, and improve instrument orientation stability during downhole measurements. CTIA's tungsten alloy inclinometer counterweight combines high density, compact size, and dimensional stability to provide the required mass within limited instrument space for measurement-while-drilling systems, gyroscopic and electronic inclinometers, and engineering borehole measurement equipment.

2. Features of CTIA's Tungsten Alloy Inclinometer Counterweight
(1) High Density, Space Saving: High density of 16.5–18.8 g/cm³ enables tungsten alloy to deliver substantial mass in a compact volume, making it ideal for downhole inclinometers with limited internal space.
(2) Flexible Center-of-Gravity Adjustment: Adjustable counterweight mass and positioning help optimize the instrument's center of gravity according to its structure, sensor location, and measurement component layout.
(3) High Strength, Downhole Durability: High strength and good toughness support the selection of suitable tungsten alloy grades according to downhole vibration, impact, and structural loads.
(4) Dimensional Stability, Precision Assembly: A relatively low coefficient of thermal expansion helps control dimensional changes and meet the assembly requirements of internal inclinometer components.
(5) Flexible Structural Options: Cylinders, rings, sleeves, blocks, and custom-shaped structures can be machined with center holes, shoulders, threads, and locating features to suit assembly requirements.
(6) Material Options: W-Ni-Fe and W-Ni-Cu tungsten alloys offer different magnetic properties and can be selected according to instrument requirements, operating conditions, and structural needs.

3. Applications of CTIA's Tungsten Alloy Inclinometer Counterweight
CTIA's tungsten alloy inclinometer counterweight is suitable for various downhole instruments used to measure inclination, azimuth, and borehole trajectory.
(1) Measurement While Drilling (MWD) Systems: Used in downhole inclination measurement assemblies to accommodate vibration, impact, and space constraints during drilling operations.
(2) Gyroscopic Inclinometers: Used in gyroscope sensor assemblies to meet internal mass distribution and structural assembly requirements.
(3) Electronic Inclinometers: Used in measurement equipment equipped with accelerometers, magnetometers, and other sensors to suit different internal layouts and installation spaces.
(4) Engineering Inclinometers: Used in inclination measurement equipment for geological exploration, foundation pits, and engineering boreholes to meet different counterweight and installation requirements.

4. Specifications of CTIA's Tungsten Alloy Inclinometer Counterweight
(1) Materials: W-Ni-Fe and W-Ni-Cu alloys
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Forms: Tungsten alloy rods, rings, sleeves, blocks, and customized structures
(5) Dimensions: Diameter, length, and wall thickness are customizable

CTIA GROUP (CTIA) draws on nearly 30 years of experience in tungsten alloy manufacturing, supported by powder metallurgy and precision machining capabilities, to provide customized tungsten alloy counterweight solutions for inclinometers that meet specific requirements for installation space, counterweight mass, center of gravity, and connection methods.
