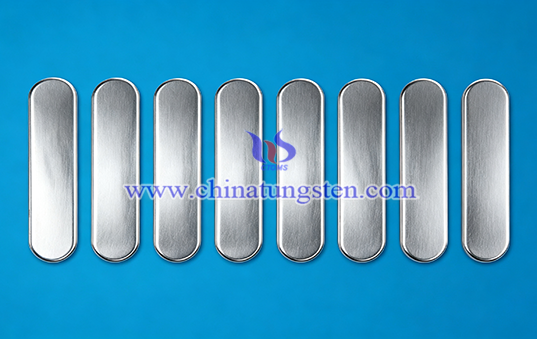

Tungsten Alloy Badminton Racket Counterweight
1. What's Tungsten Alloy Badminton Racket Counterweight?
Tungsten alloy badminton racket counterweight is tungsten alloy balancing weight installed in the racket head, frame, handle, or other locations to adjust mass distribution, balance point, and swingweight. CTIA's tungsten alloy badminton racket counterweight offers high density, allowing substantial mass to be concentrated within limited installation space. It also features concentrated mass, dimensional stability, and lead-free, environmentally friendly material characteristics, making it suitable for weight adjustment and structural balancing in badminton rackets.
2. Features of CTIA's Tungsten Alloy Badminton Racket Counterweight
(1) High Density, Compact Size: Density of 16.5–18.8 g/cm³ allows greater mass in a smaller volume, making the counterweight suitable for limited installation space in the racket head, frame, and handle.
(2) Concentrated Mass, Flexible Balance Adjustment: Counterweight mass and installation position determine mass distribution, allowing head-heavy, even-balanced, or handle-heavy configurations.
(3) Adjustable Swingweight, Targeted Tuning: Added mass at the racket head or frame changes swingweight and moment of inertia, allowing adjustments to swing feel and mass distribution during shots.
(4) High Dimensional Accuracy, Precision Assembly: Turning, milling, grinding, and drilling control dimensions, geometric tolerances, and individual counterweight mass, ensuring a precise fit with the racket's reserved slots, internal cavities, and fixing structures.
(5) Flexible Structural Forms, Multiple Installation Options: Strips, plates, blocks, cylinders, and irregular parts can be designed to match the racket frame's contours, available installation space, and fixing method.
(6) Lead-Free, Environmentally Friendly: Lead-free material meets material safety and environmental requirements for badminton racket applications.
3. Types of CTIA's Tungsten Alloy Badminton Racket Counterweight
(1) Racket Head Counterweight: Installed inside the racket head or near the top of the frame for weight adjustment in head-heavy rackets.

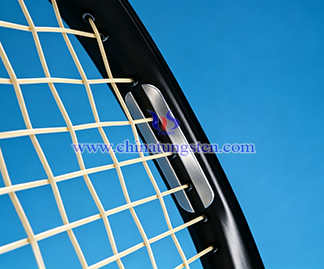

(2) Racket Frame Counterweight: Installed on both sides of the frame, such as at the 3 and 9 o'clock positions, to add localized mass.
(3) Handle Counterweight: Installed beneath the grip, in the end cap, or inside the handle for rear-end weighting and grip-feel adjustment.
(4) Customized Badminton Racket Counterweight: Designed as strips, plates, blocks, cylinders, or irregular tungsten alloy parts according to the racket structure, installation space, and fixing method.
4. Applications of CTIA's Tungsten Alloy Badminton Racket Counterweight
(1) Competitive Racket Tuning: Used to fine-tune mass distribution in professional badminton rackets, with head or handle counterweights positioned to suit players' needs for hitting power, swing speed, and balance point.
(2) Badminton Racket Development and Manufacturing: Used by racket brands in product development and batch production as embedded counterweights or inserts fitted into reserved slots, helping optimize performance parameters across different racket models.
(3) Hitting Stability Optimization: Used on both sides of the racket frame to increase resistance to twisting, reducing racket-face wobble and deviation on off-center hits.
(4) Offensive and Defensive Tuning: Adjusting mass distribution in the racket head or handle helps achieve different playing characteristics, with a head-heavy setup favoring powerful smashes and a lighter head supporting faster swings for defensive play.
5. Specifications of CTIA's Tungsten Alloy Badminton Racket Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Shape: Tungsten alloy strips, plates, blocks, cylinders, and irregular parts
(5) Surface Condition: Precision-ground or polished; customizable
(6) Dimensions and Weight: Customizable
CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with established capabilities in powder metallurgy and precision machining. CTIA provides customized badminton racket counterweights from design to finished-product delivery, meeting requirements for target mass, balance point, installation space, and structural dimensions.
