Tungsten Alloy Tennis Racket Counterweight

1. What's Tungsten Alloy Tennis Racket Counterweight?
Tungsten alloy tennis racket counterweight is high-density mass-adjustment component installed at locations such as the racket head, frame, or handle to optimize weight distribution, balance point, and swingweight. CTIA's tungsten alloy tennis racket counterweight combines high density, compact size, concentrated mass, dimensional stability, and flexible installation options, allowing precise weight adjustment and overall performance tuning at different parts of a tennis racket.

2. Features of CTIA's Tungsten Alloy Tennis Racket Counterweight
(1) High Density, Compact Local Counterweighting: Density is typically 16.5–18.5 g/cm³, requiring only a small volume to achieve the target mass. This makes it suitable for the frame, head, handle, and other narrow or concealed spaces, providing localized mass compensation without significantly increasing external dimensions.
(2) Concentrated Mass, Easy Static Balance Adjustment: Racket weight distribution can be adjusted through counterweight mass and installation position, changing the balance point to create head-heavy, balanced, or handle-heavy configurations for different swing habits and playing styles.
(3) Adjustable Swingweight, Improved Hitting Stability: Installation at the racket head or the 3 and 9 o'clock positions of the frame increases swingweight and resistance to twisting, reducing frame torsion on off-center hits and improving hitting stability.
(4) High Dimensional Accuracy, Precise Compact Assembly: Precision turning, milling, and grinding enable good dimensional accuracy and consistency, allowing close fitting with internal slots, counterweight channels, and external mounting positions while controlling individual weight and installation dimensions.
(5) Flexible Forms, Adaptable to Different Frame Structures: Available forms include strips, plates, cylinders, blocks, and irregular structures. Structural design can incorporate frame curvature, cross-sectional dimensions, installation space, and fixing methods to maintain good compatibility between the counterweight and racket structure.
(6) Flexible Weight Options, Fine Adjustment: Different masses and dimensions can be designed according to the required weight increase of the racket. Single-point or multi-point placement enables gradual mass adjustment for precise matching of balance point, swingweight, and overall racket weight.

3. Applications of CTIA's Tungsten Alloy Tennis Racket Counterweight
(1) Racket Head Counterweight: Adds localized mass to the racket head to directly increase swingweight and improve the power and stability of shots.
(2) Racket Frame Counterweight: Installed around the 3 and 9 o'clock positions of the frame to increase torsional stiffness and stability around the sweet spot, reducing frame movement on off-center hits.
(3) Handle Counterweight: Adds mass to the butt end of the handle to lower the overall balance point while tuning total racket weight without significantly reducing head maneuverability.
(4) Racket Balance Tuning: Precisely matches counterweight mass and placement to adjust the static balance point, dynamic swingweight, and overall mass distribution.
(5) Customized Tennis Racket Counterweights: Counterweight components with specific geometries, dimensions, and tolerances can be designed according to different frame cross-sections, internal cavities, and fixing structures.

4. Specifications of CTIA's Tungsten Alloy Tennis Racket Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.5 g/cm³

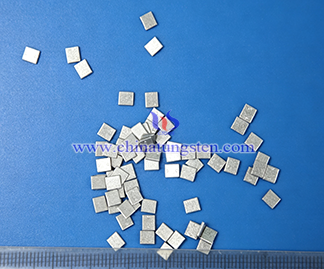

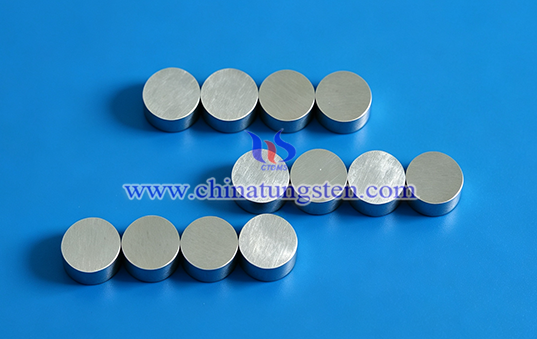

(4) Product Forms: Tungsten alloy blocks, strips, plates, cylinders, and other irregular structures
(5) Dimensions: Customizable
(6) Surface Condition: Precision-ground or polished, customizable

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, including powder metallurgy, precision machining, and quality inspection. CTIA designs and customizes tungsten alloy tennis racket counterweights for the racket head, frame, handle, and other locations, tailoring counterweight mass, dimensions, and structure to the required balance point and installation position.
