Tungsten Alloy Marine Counterweight

1. What’s Tungsten Alloy Marine Counterweight?
Marine counterweights are key functional components used to compensate for the mass distribution of the hull and equipment, fine-tune the center of gravity, and maintain vessel stability. Tungsten alloy marine counterweight is made using tungsten powder as the base material, with nickel, iron, or copper elements added, through powder metallurgy. CTIA's tungsten alloy marine counterweights offer high density, high tensile strength, and excellent resistance to marine corrosion. They provide the required ballast mass within the extremely limited spaces of ship cabins, keels, and equipment, offering an efficient solution for static stability, attitude control, and dynamic balancing in modern ships and marine engineering.

2. Features of CTIA's Tungsten Alloy Marine Counterweights
(1) High Density, Small Volume: With a typical density of 16.5–18.8 g/cm³, tungsten alloy counterweights occupy less space than lead or steel counterweights of the same mass, making them suitable for space-constrained locations such as keel compartments, bilge spaces, and equipment interiors.
(2) Concentrated Mass, Flexible Adjustment: A large mass can be concentrated at a specified position. Adjusting the counterweight mass and installation position changes the vessel's mass distribution, allowing configuration of the center of gravity, metacentric height, and righting moment.
(3) Precise Dimensions, Easy Assembly: Good machinability allows precise control of dimensions and mating surfaces, making the counterweights suitable for recessed installation, bolt fastening, and slot mounting.
(4) High Strength, Stable Load-Bearing Performance: Tensile strength can reach 700–1000 MPa, enabling the counterweights to withstand mechanical loads, alternating stresses, and structural vibrations during vessel operation.
(5) Corrosion Resistance, Adaptability to Marine Environments: Good chemical stability allows the counterweights to withstand marine operating conditions involving salt spray, humidity, water vapor, and bilge water.
(6) Various Shapes, Adaptability to Different Structures: Available in tungsten alloy blocks, bars, cylinders, discs, and customized parts with holes to fit different hull cavities and fastening structures.
(7) Lead-Free, Safer Use: Lead-free tungsten alloys help reduce heavy-metal pollution and are suitable for counterweight applications in ships and marine equipment.

3. Applications of CTIA's Tungsten Alloy Marine Counterweights
(1) Commercial Vessel Counterweights: Used in bulk carriers, container ships, oil tankers, and other vessels. Proper counterweight placement adjusts the vessel's center of gravity and stability.
(2) Engineering Vessel Counterweights: Used in crane vessels, semi-submersible vessels, tugboats, pipe-laying vessels, and other engineering vessels. Localized mass is configured according to equipment layout and operating loads to maintain hull balance.
(3) High-Speed Craft and Yacht Counterweights: Used in the keels, bilges, and other locations of high-speed boats, catamarans, and yachts. Adjusting counterweight mass and position helps control trim, heel, and mass distribution.
(4) Passenger Vessel Counterweights: Used for hulls and equipment on passenger ships and other passenger-carrying vessels to balance mass distribution and adjust the center of gravity in coordination with the hull structure.
(5) Marine Equipment Counterweights: Used to configure localized mass in marine machinery, electromechanical equipment, and related structures to meet equipment installation and balancing requirements.

4. Specifications of CTIA's Tungsten Alloy Marine Counterweights
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³

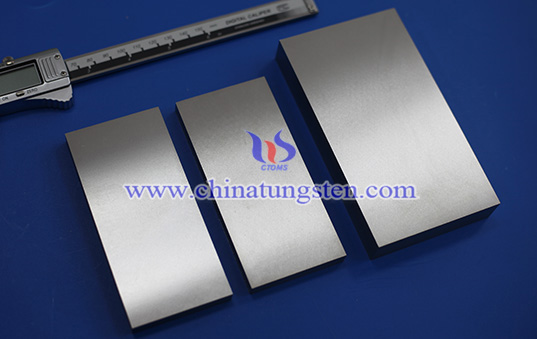

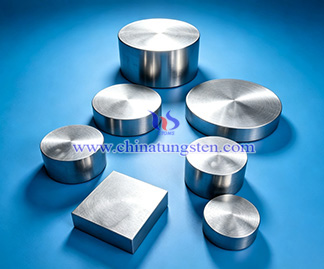

(4) Shapes: Tungsten alloy blocks, bars, rods, plates, and customized counterweight parts
(5) Surface Finish: Precision grinding, polishing, and other finishes
(6) Dimensions and Weight: Customizable

CTIA GROUP (CTIA) has nearly 30 years of expertise in tungsten alloy manufacturing, backed by advanced powder metallurgy and precision machining capabilities. CTIA delivers engineered tungsten alloy counterweight solutions integrating structural design, material selection, and precision fabrication to meet the demanding requirements of commercial vessels, engineering ships, high-speed craft, yachts, and marine engineering systems.
